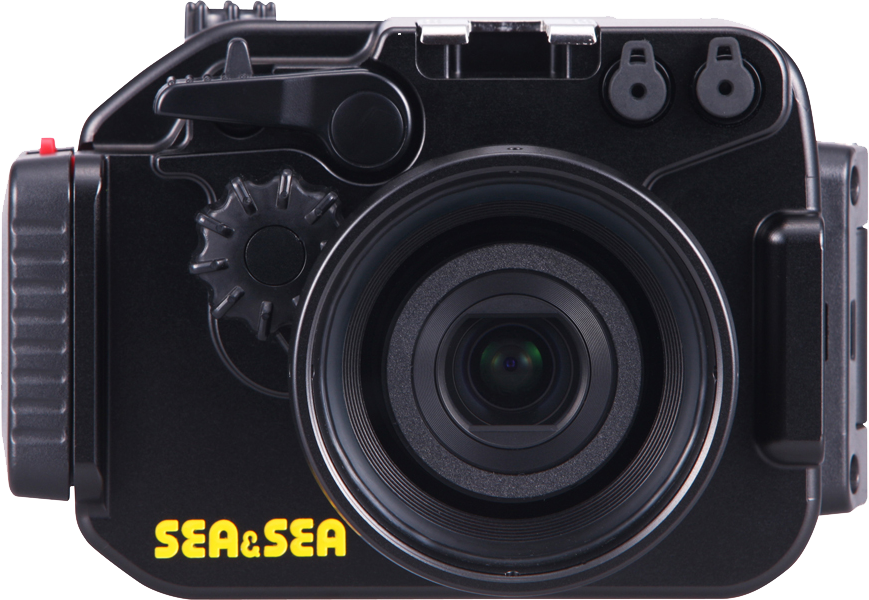

MDX-RX100/II

Port with M67 screw mount

The port is threaded so accessory lenses, including the M67 Wide-angle Conversion Lens 0.6x and the Close-UP Lens 125 (discontinued) with M67-M62 Step Down Ring58122, can be used.

* Angle of view increases from 28mm to approximately 17 mm when the M67 Wide-angle Conversion Lens 0.6x is mounted.

LCD Monitor Hood with Lens can be fitted

The hood reduces reflections and provides a clear and complete view of the cameras LCD screen.

SA8 Fixed Ball Base

Using the SA8 Fixed Ball Base allows various light mounting options without needing a tray or stay.

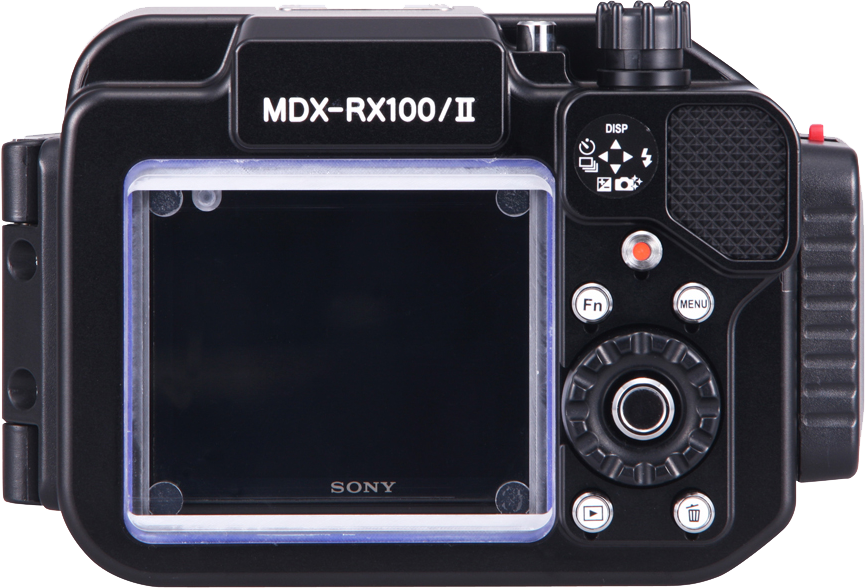

The large dial on the housing front connects to the camera’s control ring and smoothly operates Manual Focus and other functions (depending on mode selected). The multipurpose control wheel on the camera’s rear is operated by the multi-point controller on the back of the housing. All controls can easily be reached and operated by your right hand.
Equipped with two Fiber-optic cable sockets.
Optional Leak Sensor46115 can be built into the housing. Its LED lamp is located in the LCD monitor window and alerts you to any water ingress.
Equipped with two sacrificial zinc diodes (one of the front case and the second on the rear) to avoid electrolysis damage. Sacrificial Zinc Anode (2 pieces)46116
Anti-slip rubber piece located on the upper right-hand rear case, helps hold the housing steady.
The housing is easily opened and locked with the rotary latch and hinge.
External strobes can be mounted by attaching an SA8, Sea-Arm 7 Compact or similar to the tripod socket on the bottom of the housing.
Depth rating of 100m/330ft makes the housing ideal for tech diving.

[Construction] Corrosion-resistant aluminum alloy, galvanized (black)
[Depth rating] 100m/330ft
[Dimensions (WxHxD)] 147x97x117mm / 5.8x3.8x4.6 inches (including the port)
[Weight] Approx. 800g / 28.0oz (housing only)
[Underwater weight] Approx.900g / 31.7oz (including the camera)
[Compatible strobes] YS-01、YS-02、YS-110α、and YS-D1
