This digital SLR housing is the result of our pursuit performance and high reliability.

＜Discontinued Product＞

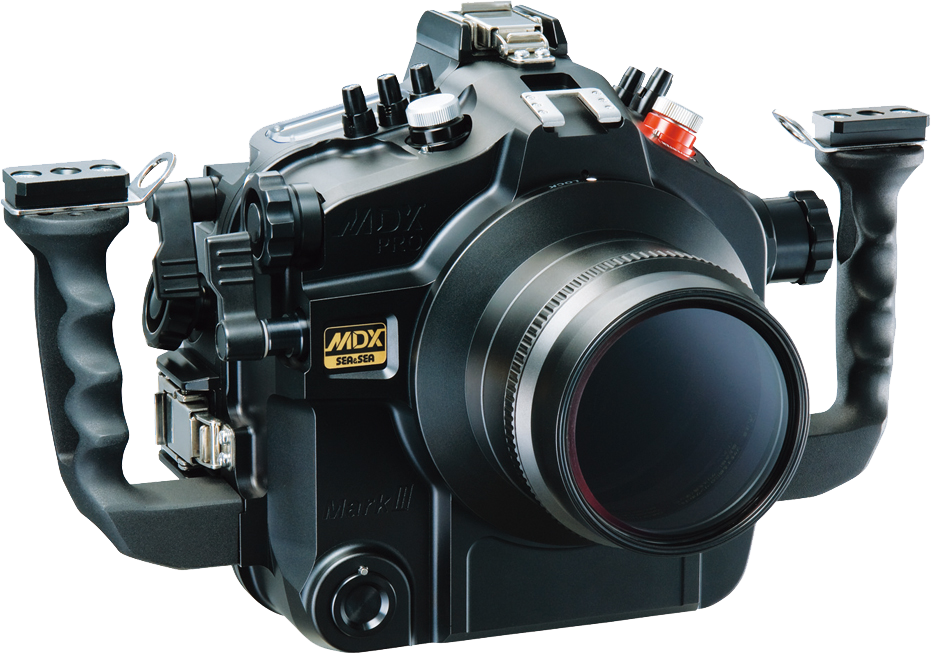

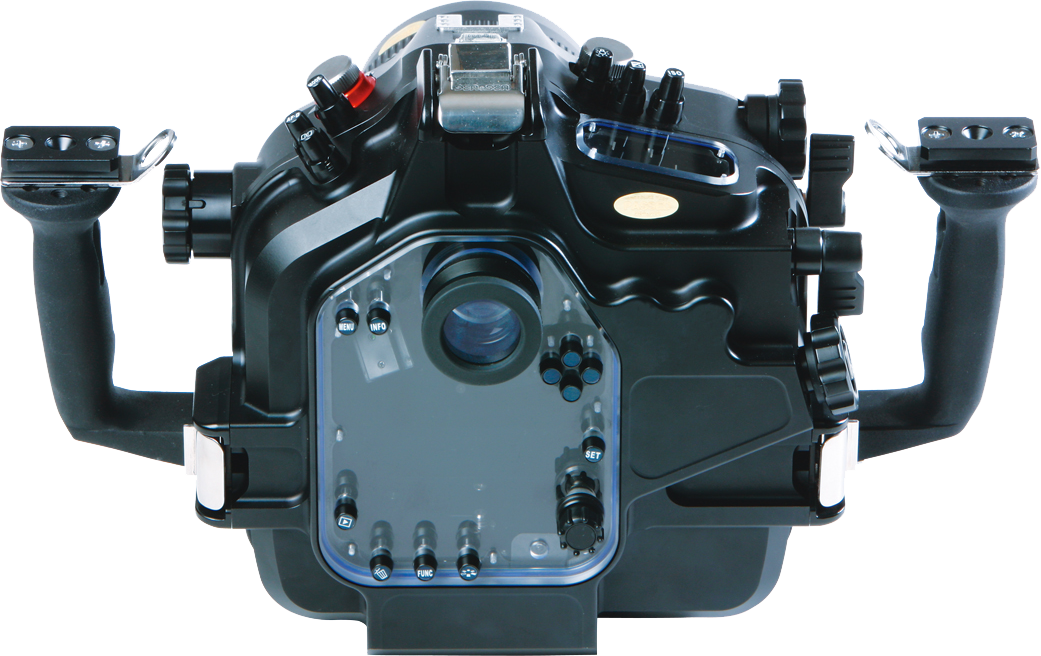

MDX-PRO MarkIII

for Canon EOS-1D MarkIII/EOS-1Ds MarkIII

Product No. 06135

Features

Uses a lightweight and durable aluminum body that can withstand even the most severe shooting environments

The aluminum material used in the MDX series housings realizes a body that is both lightweight and strong. Because we envisioned photographers’ harsh usage environments, the body was successfully brought to an even higher level of perfection through the implementation of anodized aluminum processing. The all-new high-rigidity, high-durability, high-precision MDX series demonstrates the highest levels of performance under a variety of shooting conditions.

Manual adjustment is possible without releasing the grips

Designed for easy operation so you can comfortably reach the main dial and quick control dial with your fingers, while keeping your hands on the grips. Delicate operations are possible even while you are looking through the viewfinder. The larger diameter of frequently-used dials allows you to change the shutter speed or aperture value with a light touch while supporting the framing. This frees you, the photographer, to concentrate only on the perfect chance for a great picture.

TTL converter connector employed as standard

The included 6-pin wired connector accepts the optional YS Converter/C. The converter works with the YS-Series strobes to provide automatic TTL flash adjustment.

*The converter requires the 5-pin Sync Cord/N for connecting to a strobe.
*The MDX-PRO Mark? housing comes from the factory with these bulkhead connectors: one type-N (2-pin wired) connector and one 6-pin (6-pin wired) connector.
*To use two SEA&SEA YS-Series strobes with the factory-equipped bulkhead connectors, you must use the 5-pin Dual Sync Cord/N.

Other Features

Controls almost all of the Canon EOS-1D/1Ds Mark III’s essential functions underwater.
Every detail of the housing is precision machined from a solid aluminum block to achieve a high-quality texture and design. All edges have been polished carefully for safety.
Manufactured from solid block aluminum alloy with all edges carefully polished for safety.
The housing is protected by a highly corrosion resistant anodized (black) coating. The coating protects the housing from environmental corrosion and abrasions.
Comes standard with two bulkhead connectors: one type-N connector (2-pin wired for manual) and one 6-pin wired connector (for dedicated TTL).
Equipped with a Optical Viewfinder 0.66x standard. Interchangeable 0.5x/0.8x viewfinders (optional) are also available.
Compatible with the Shutter-activated Focus Light (optional, factory modification is required).
A built-in leak sensor immediately alerts you to any water leakage.
Strong and durable build, with a depth rating of up to 60m / 200ft.

Specifications

[Construction]
Body: corrosion-resistant aluminum alloy (machined)
Grip: corrosion-resistant die-cast aluminum alloy
[Depth rating] 60m / 200ft
[Dimensions (WxHxD)] 335x220x147mm / 13.4x8.8x5.9inch
[Weight] Approx. 3,150g / 110.3oz (Housing only)
[Set items] Housing body cap, hex wrench, CR2032 lithium battery, attachment tool

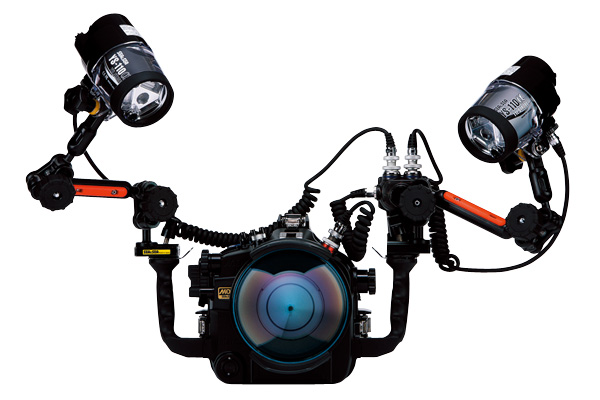

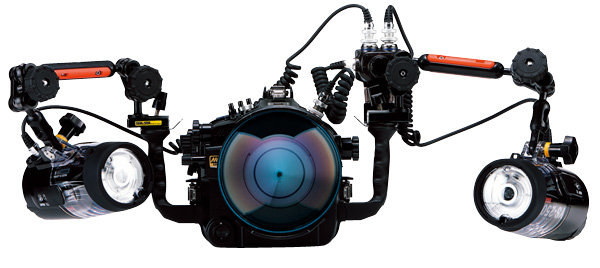

System Example

YS Converter/C
NX Compact Dome Port
YS-110α *2
5-pin Sync Cord/N *2
Sea Arm VII Basic Set *2

YS Converter/C
Optical Dome Port
YS-250PRO *2
5-pin Sync Cord/N *2
Sea Arm VII Basic Set *2

Manual Download

manual_en_06135_mdx-mkiii.pdf

Related Information

Replacement of the strobe sync connector (6-pin wired 2-pin wired)
Consult a SEA&SEA authorized service center for more compatibility information.

Customizing the housing offers additional functions. You can replace the 6-pin wired TTL converter connector on the top of the housing with a 2-pin wired strobe connector for an additional cost. This modification provides two 2-pin wired strobe connectors so you can connect two SEA&SEA YS-Series strobes.
*This modification does not support automatic TTL flash adjustment.
*It requires the 5-pin Sync Cord/N.

Related Items

O-ring Set

Product No. 62136
